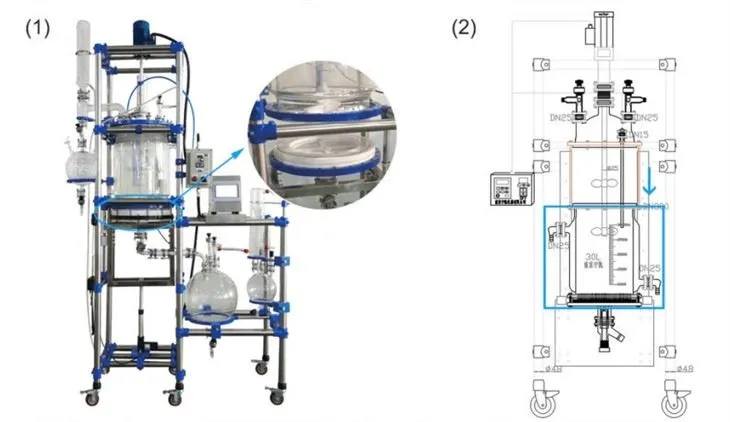

Qhib downward Jacketed Reactor Customize

Qhib downward Jacketed Reactor Customize

Downward qhib Jacketed Reactor Customize los TOPTION teb chaws Suav, ISO & WIC daim ntawv no sab saum toj zoo tau lees tias, puas yoojyim rau koj mus cuag tej hom phiaj chem no yam txheej coj iav reactor

Product Details

Downward qhib Jacketed Reactor Customize los ntawm TOPTION lub teb chaws Suav, ISO & CE daim ntawv no sab saum toj zoo tau lees tias, puas yoojyim rau koj mus cuag cov hom phiaj tej tshuaj Event mus iav tsuas muaj ib reactor, wb xyaum ua nws qhib downward jacketed iav reactor tsim cai hais no yam txheej coj iav reactor:

1. pub koj muab cov khob haus dej muaj peev xwm sib txawv rau tib reactor taub hau. Saj zawg zog rau ntau lub hom phiaj.

2. hauv reactor lub cev tsim cai hais:

-Hwj jacketed cov tshuaj tiv thaiv.

-Downward qhib tsis tau khiav tawm ntawm lub taub hau thiab iav fittings.

-Flange kev twb kev txuas F180, yuav ceev 1-5L Event flasks.

-Ø8 drift taub.

3. peb hom reactor condenser muab rau koj rau chooose:

-Reflux Condenser.

-(Optional) distillation Condenser.

-(Optional) rectification-tau txais cov nyiaj lawv.

4. fais cua sov lawv cov tshuaj tiv thaiv yog nyob ntawm yeem thiab lifting tsim yog muaj.


Hom

Do nruab nrab flange

Khoom ua kua inflow

Condenser

Temp ntsuas

Ntau ua valve

Tau them

chaw nres nkoj

Nplawm duav

Reactor hau flange

Puab txoj kab uas hla ntawm lub cev reactor

Lwm txoj kab uas hla

Qhov lub cev siab reactor

Hwj chim

Tig ceev

TOPR-1L

35

24# 0.25L

24#

14#

-----

-----

Thauj tog rau nkoj lub hom ¢7mm

150

113

150

250

40

50-800

TOPR-2L

35

24# 0.25L

24#

14#

-----

-----

Thauj tog rau nkoj lub hom ¢7mm

150

135

180

280

40

50-800

TOPR-3L

35

24# 0.25L

24#

14#

-----

-----

Thauj tog rau nkoj lub hom ¢7mm

150

150

200

300

40

50-800

TOPR-5L

40

24# 1L

24#

19#

24#

-----

¢10mm ib txheej ob hniav duav yam

180

180

230

400

60

50-600

TOPR-10L

50

34# 1L

34#

DN15

DN25

-----

¢16mm ib txheej peb hniav duav yam

265

230

290

450

120

50-600

TOPR-20L

50

34# 1L

34#

DN15

DN25

-----

¢16mm ib txheej peb hniav duav yam

265

290

330

550

120

50-600

TOPR-30L

50

34# 1L

34#

DN15

DN25

-----

¢16mm ib txheej peb hniav duav yam

265

330

365

730

120

50-600

TOPR-50L

50

34# 1L

34#

DN15

DN25

DN80

¢16mm coj txheej hniav peb duav yam

265

365

410

850 uas

140

50-600
