TOPTION ethanol extraction centrifuge los ntawm UL ntawv pov thawj, UL cov qauv rau txhua yam khoom siv hluav taws xob, yog tias koj xav tau, CE tus qauvCov khoom siv hluav taws xob yog xaiv tau, kuj tau raws li GMP tus qauv, dav muaj peev xwm ntau 15lbs, 30lbs, 50lbs, 110lbs, 160lbs, 220lbs, hom no yog 220lbs hom. Yog tias koj xav noj tshuaj ntxiv thiab rho tawm ntawm ethanol los ntawm cov khoom siv cog ntoo, TOPTION hom tshuaj ethanol rho tawm yuav yog koj qhov TOPTION.

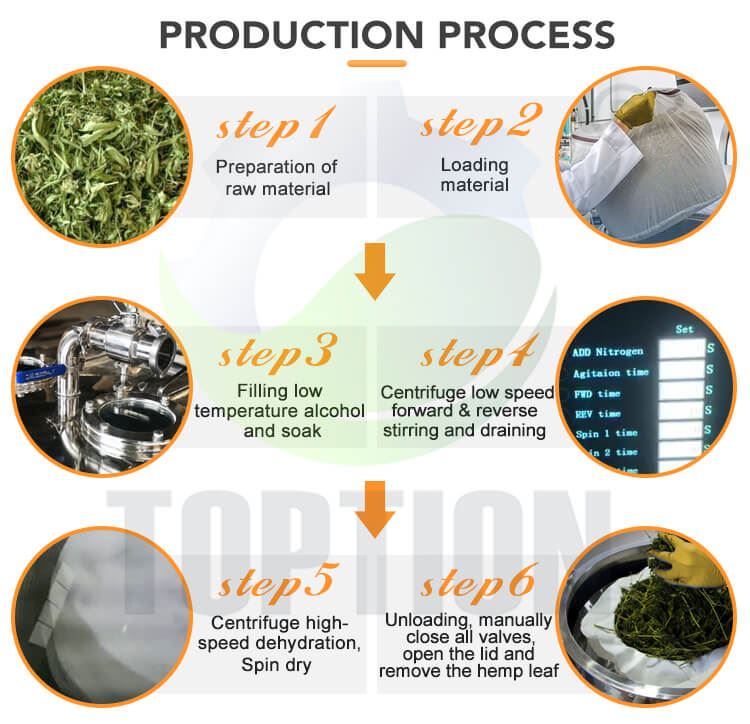

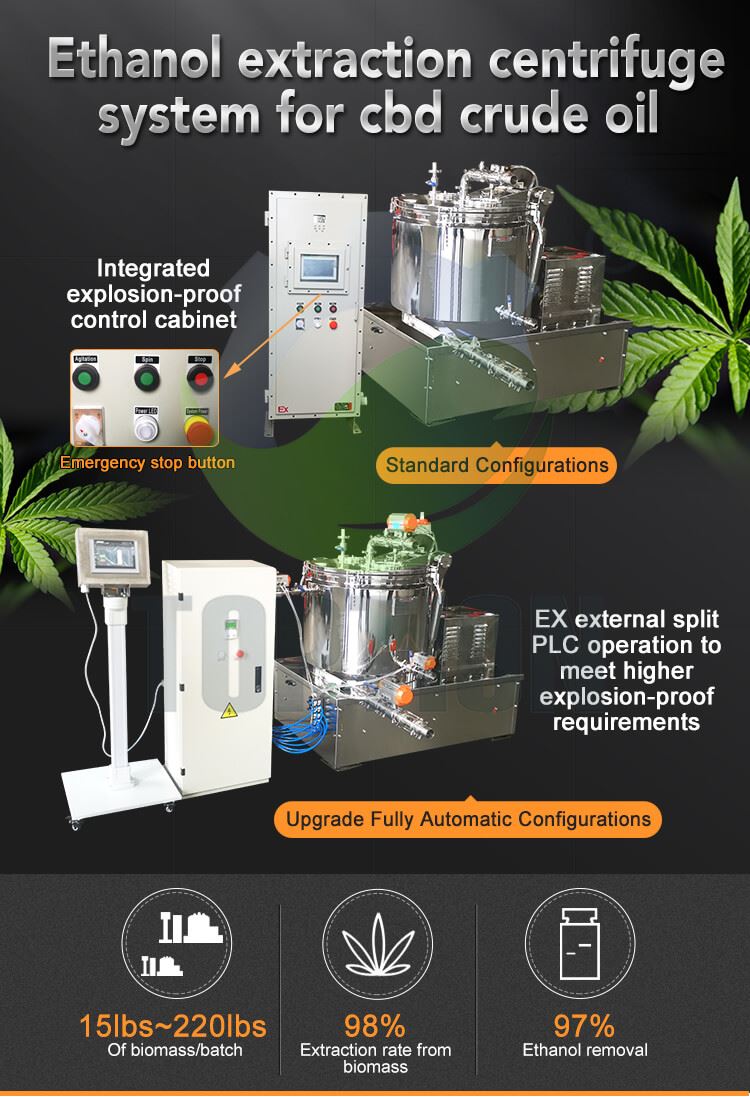

 15lbs ~ 220lbs ntawm biomass / batch, 98% rho tawm los ntawm biomass, tshem tawm 97% ethanol. |  Kauj ruam 1- kev npaj cov khoom raw. Kauj ruam2- Chaw thau khoom. Step3- Txhaws cov dej cawv kom tsawg thiab tsis xau. Step4- Centrifuge tsawg ceev rau pem hauv ntej& rov qab nplawm thiab txhuav. Kauj ruam5- Centrifuge siab nrawm lub cev qhuav dej, kiv qhuav. Kauj ruam 6- Kev xa khoom tsis ncaj, manually kaw txhua lub qub, qhib lub hau thiab tshem tawm cov nplooj hemp. |
Cov txheej txheem technical of220lbs ethanol extraction centrifuge
Cov tsis loj | TOP-C220 stainless hlau ethanol cov khoom siv rho tawm |
Txog ntsha taub (inch) | 47 |
Txog ntsha ntim (L) | 565 |
Biomass / txau （lbs） | 220 |
Cawv cawv (L) | 745 |
Txheem Max ceev (r / min) | 700 |
Xaiv 1：nrawm | 1000 |
Lub cev muaj zog loj (kw) | 18.5/22 |
Txog ntsha load-tau cov kabmob (lbs) | 540 |
Qhov Loj (L * W * H) hli | 2200*1700*1500 |
Lub cev hnyav (kg) | ≈2500 |

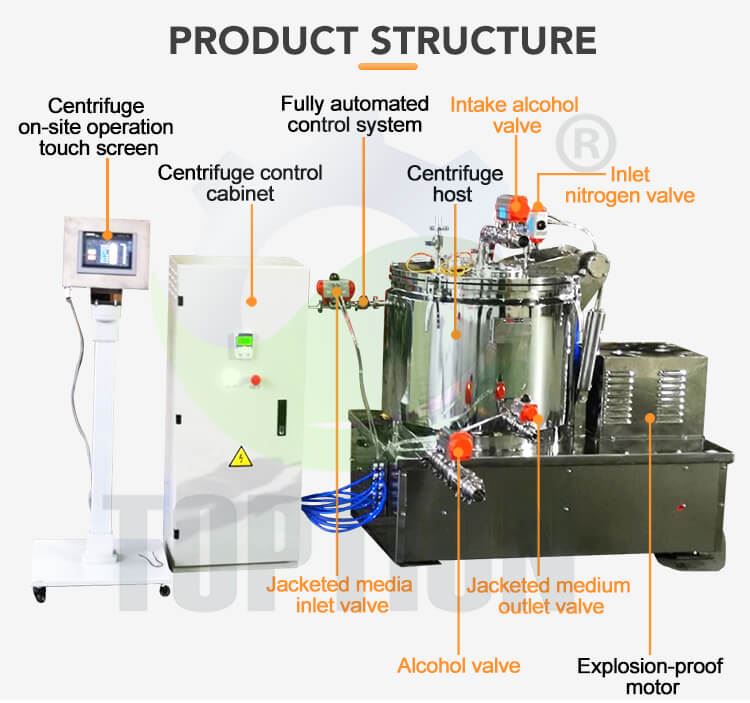

Lub ntsiab nta ntawm TOPTION ethanol cov khoom siv rho tawm
1.Qhov lub hau npog ntawm centrifuge yog qhib nrog lub tshuab hlav caij nplooj ntoos hlav los pab tus neeg teb xov tooj kom yooj yim qhib lub hau.

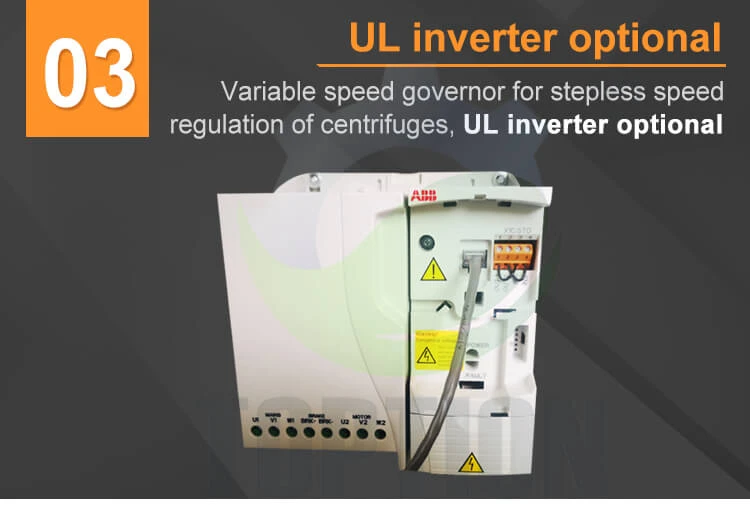

2.Adopt ua ke tawg-pov thawj tswj txee, Tebchaws USA Honeywell hom inverter.

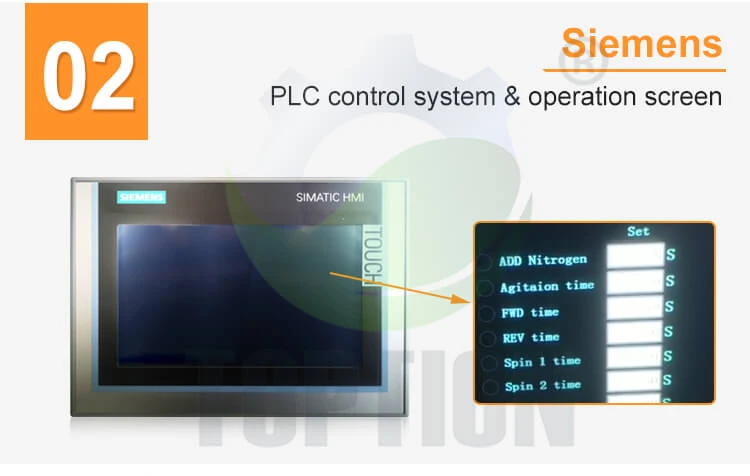

3.Txhua khoom siv hluav taws xob qis hluav taws xob tau muab los ntawm Schneider, PLC siv Siemens, Kev Ua Haujlwm Saib Xyuas kev siv Siemens.
4.Box-hom tiaj tiaj-phaj, damping thiab tiv thaiv kev co, ntxeev lub hau sib khi, thiab phau ntawv tawm txheej sab saud.

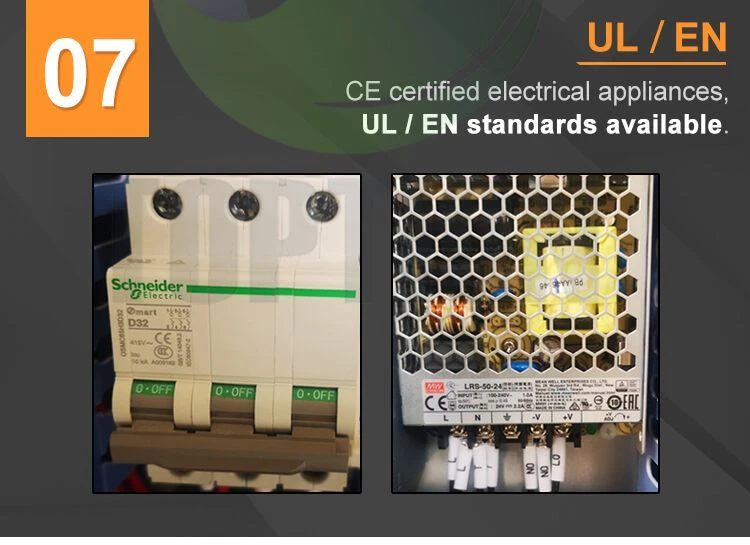

5.UL daim ntawv pov thawj, GMP txuj, CE ntawv pov thawj kev teeb tsa yog muaj.
 |
UL ntawv pov thawj teeb tsa Qauv txuj GMP |

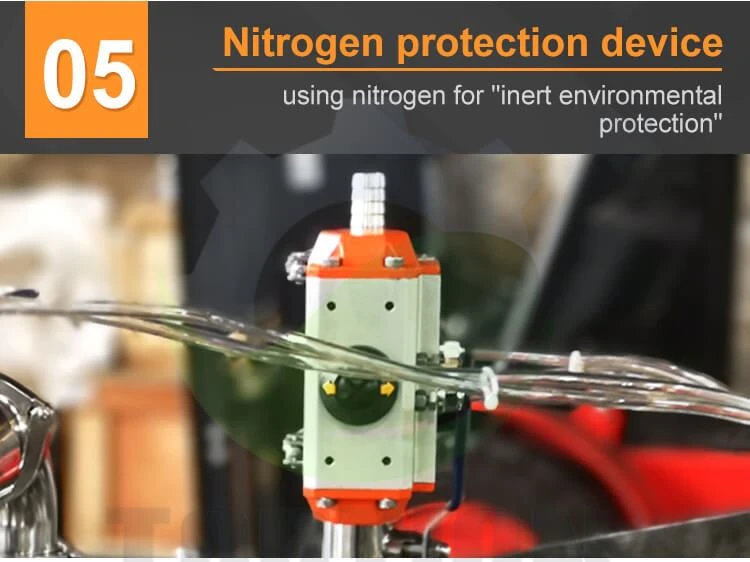

 |  Nitrogen tiv thaiv ntaus qauv tsim Siv cov nitrogen rau" inert ib puag ncig tiv thaiv" |

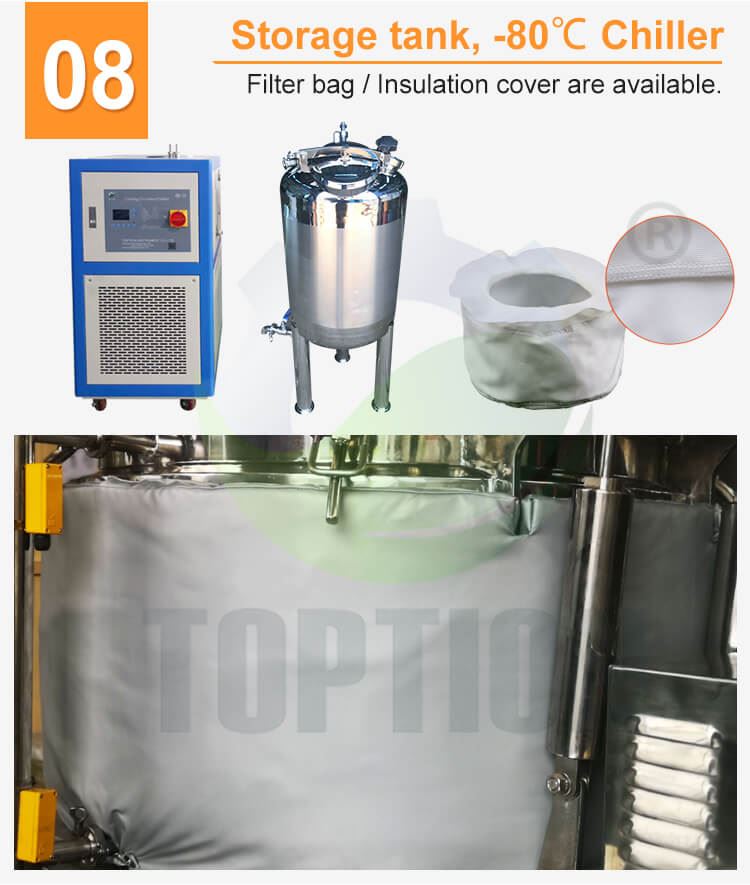

|  Cov khoom ntim cia, -80 degree chiller, lub hnab lim, rwb thaiv tsev npog tau muaj, txais tos huinfo@toptionlab.comua kev cai raws koj qhov yuav tsum tau ua. |
 |

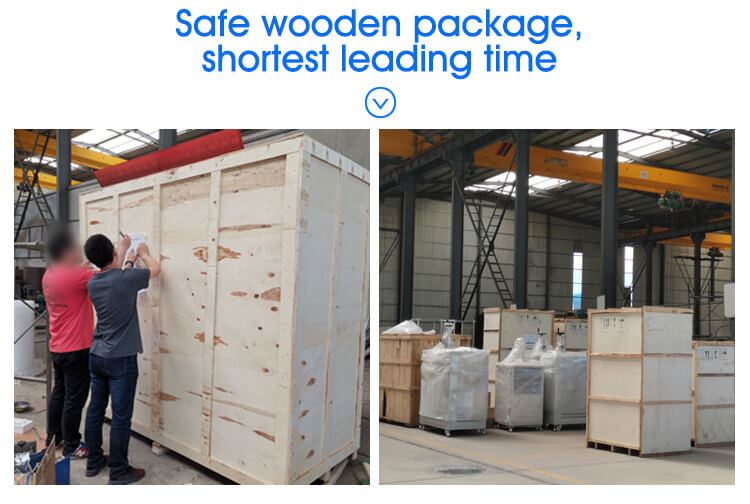

Muaj kev nyab xeeb cov pob ntoo, cov khoom lag luam tuaj yeem xa tau ceev. |
